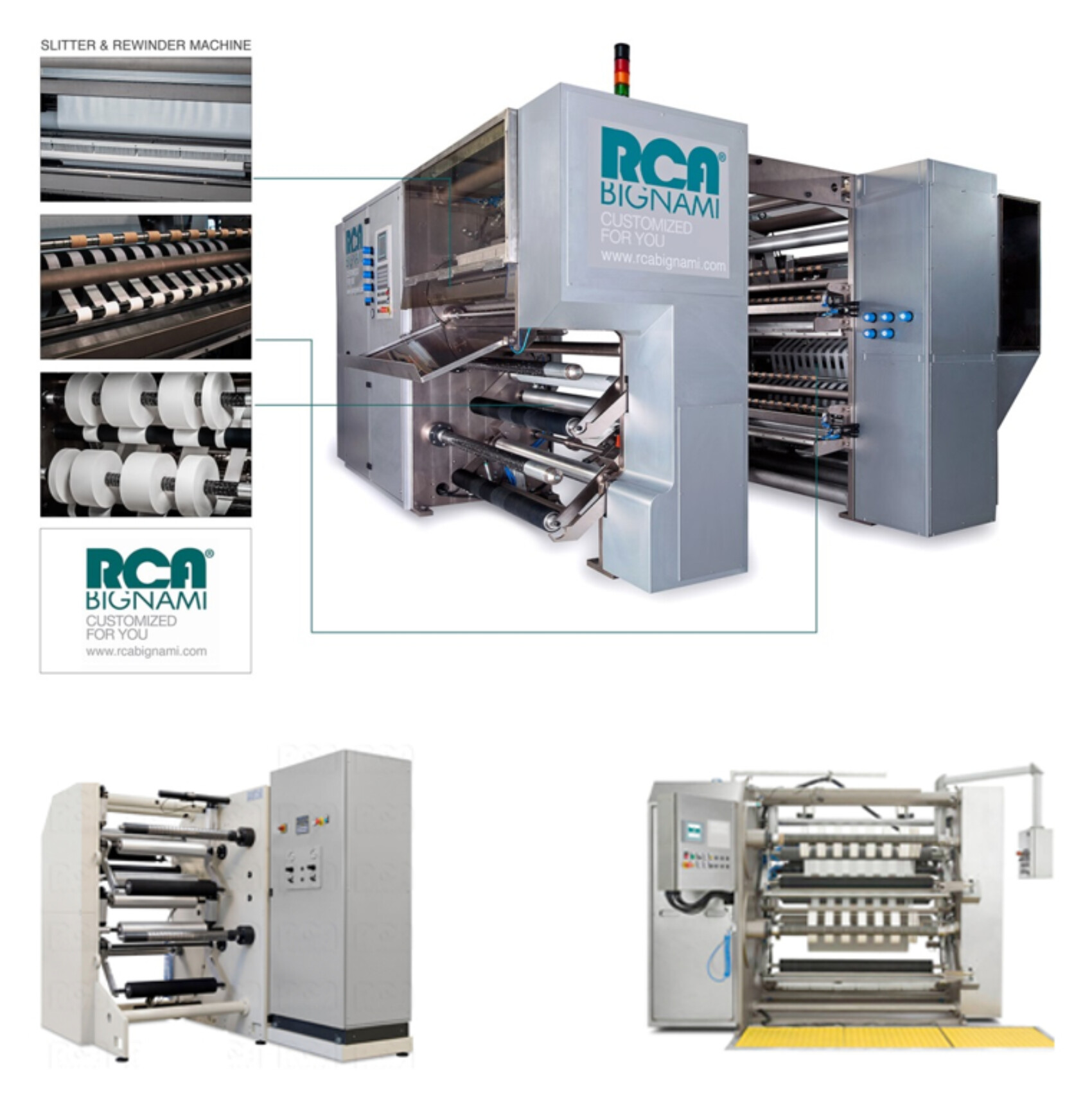

Slitting

An industrial Slitting Machine is a piece of equipment that slices large coils of material down into smaller strips, requiring precision.

The working principle of a slitter rewinder machine involves feeding a large jumbo roll of material through the machine, which passes through a set of rollers and onto an unwinding stand. The material is then guided through the slitting blade, which cuts the jumbo roll into multiple smaller rolls of the required width.

RCA Bignami is partnering with different suppliers and can offer different type and sizes of Slitting machines for various applications.

• Different laminate to be slit
• Max web width roll up to 1200mm
• Max mother OD 800mm
• Max daughter roll OD 600mm
• Min slit width 25mm
• Slitting method rotary crush cut
• Tension range 10 – 500 N
• Tension controlled by closed loop friction shaft
• Slit speed up to 100m/min
